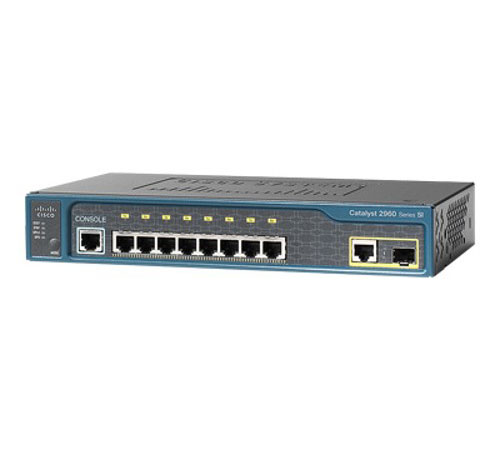

WS-C2960-8TC-S-RF

Technical Specifications
General
Device Type
Switch - 8 ports - managed
Enclosure Type
Desktop
Subtype
Fast Ethernet
Ports
8 x 10/100 + 1 x combo Gigabit SFP
MAC Address Table Size
8K entries
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah
RAM
64 MB
Flash Memory
32 MB flash
Status Indicators
Port transmission speed, port duplex mode, power, link OK, system, link/activity
Expansion / Connectivity
Interfaces
8 x 100Base-TX RJ-45 ¦ 1 x SFP (mini-GBIC)
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
30 Watt
Miscellaneous
Compliant Standards
TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, FCC Part 15, UL 1950 Third Edition, CSA 22.2 No. 950 Third Edition
Pricing Type
Refurbished
Dimensions & Weight
Width
10.6 in
Depth
8.1 in
Height
1.7 in
Weight
3.09 lbs
